Máquina automática de llenado de agua y gas para bebidas y refrescos CSD

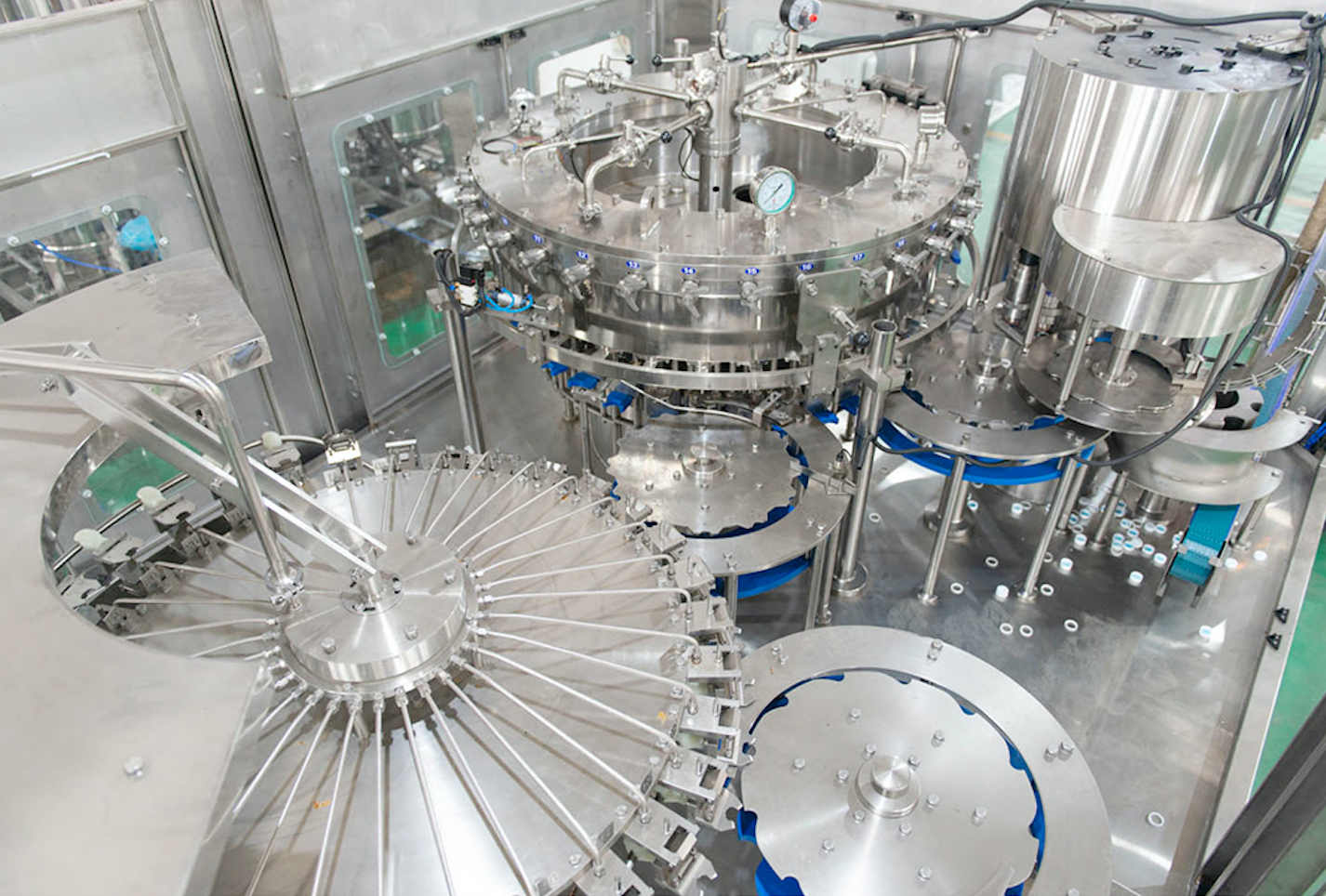

Soft drinks filler 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the
requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology from Germany and Italy.
Estado de Disponibilidad:
Cantidad:
  • Lfd
  • LONGSN

Working Principles of soft drink filling machines

The carbonated beverage filling machine is self-designed and manufactured according to the principle of equal pressure filling, which can fill liquid into the bottle washing machine sent by the bottle washing machine.

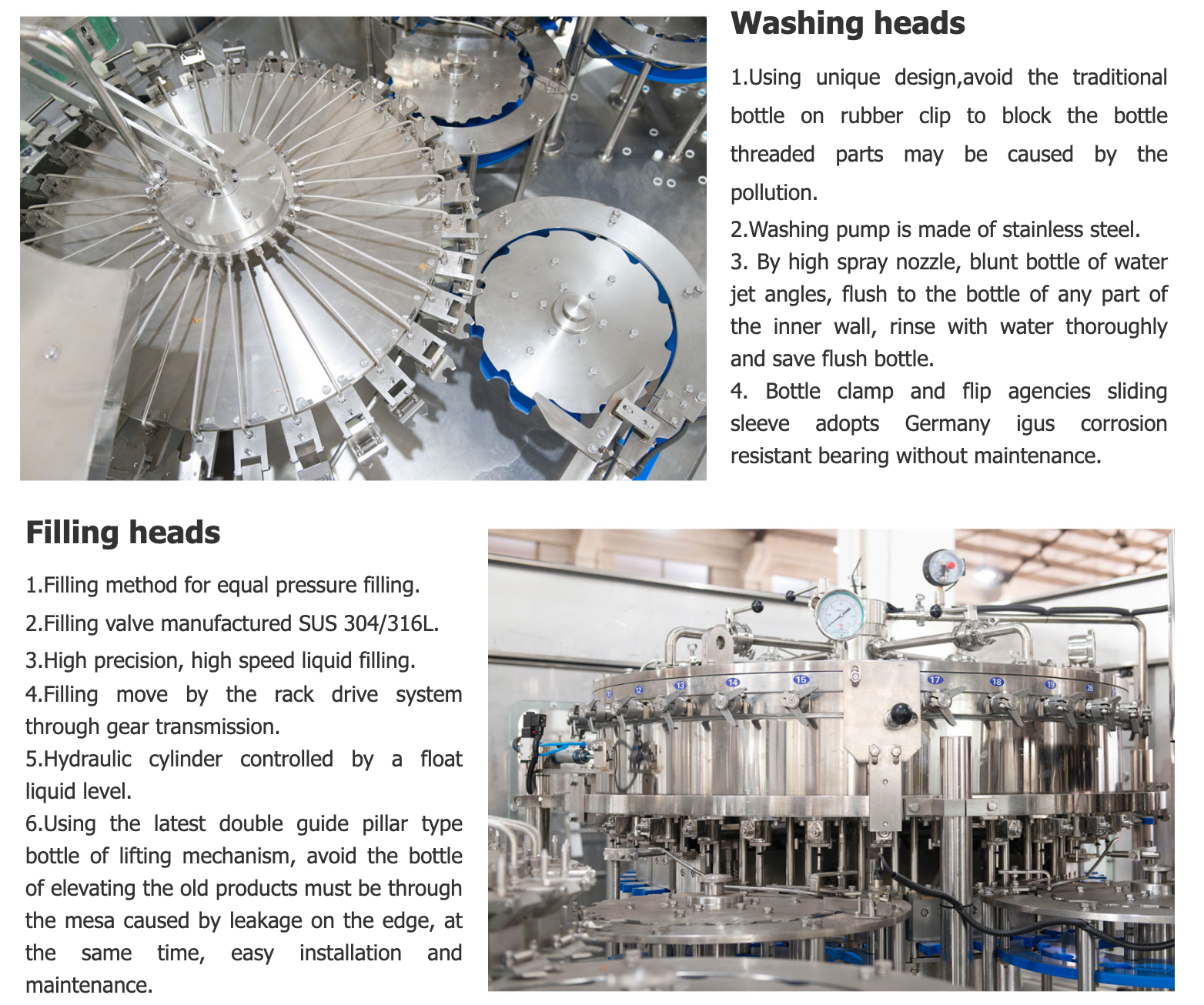

The filling valve adopts an equal pressure mechanical valve, the filling is fast and sensitive, and the filling level has high accuracy. The centering guide adopts guide rod centering and unique bottle mouth clamping technology, which can ensure the accurate sealing between the bottle mouth and the filling valve and reduce the leakage of materials from the bottle mouth. The main transmission adopts gear transmission, that is, open combined transmission, which has high efficiency, low noise, long service life, convenient maintenance and sufficient lubrication. The frequency converter is used to control the speed of the main motor of the machine, and the machine adopts stepless frequency conversion control. The bottle guide system has a simple structure and can be quickly and easily replaced according to the bottle type.

The whole machine adopts a bottleneck structure for transportation. The whole machine is automatically controlled by PLC, and online display of bottle jams, missing bottle caps and other faults. The material in the filling tank is automatically controlled, and the liquid level sensor detects the height of the liquid level to ensure a stable liquid level and reliable filling.

PROYECTO
CARBONATED DRINK FILLING MACHINE
Modelo
14-12-5
16-16-6
24-24-6
32-32-10
40-40-12
50-50-15
Capacity (BPH)
2000-3000
3000-5000
5000-7000
7000-10000
10000-15000
16000-20000
Botella aplicable
φ = 50-115 H = 160-330 (200 ml a 2000 ml) Tornillo de plástico o tapa de corona
Air Press (MPA)
≤0.4
Fuente de alimentación
4.4 kW
5.2 kW
6.2 kW
6.2 kW
7.5 kW
11 kW
Dimensión global
2250 × 1650 × 2250
2600 × 1965 × 2250
2980 × 2200 × 2250
3880 × 2200 × 2250
4000 × 2250 × 2500
5500 × 3500 × 2500
Peso (kg)
2500
3500
4500
6000
7200
10000
